Clevertouch | CleverLauncher | NFC Setup and Configuration

NFC Card Login

The latest technology from CleverTouch and the quickest way for users to log into Launchers on a supported CleverTouch panel is through the use of NFC card.

Every CleverLauncher user can have an NFC card configured with their login details. Users can quickly log into any CleverTouch screen connected to the main CleverLive account by tapping their NFC card against the NFC reader on the screen.

The NFC reader can be found with the following icon:

Configure the NFC Card

Admin CleverLive users have the ability to configure NFC cards for all other guest users connected to the CleverLive account.

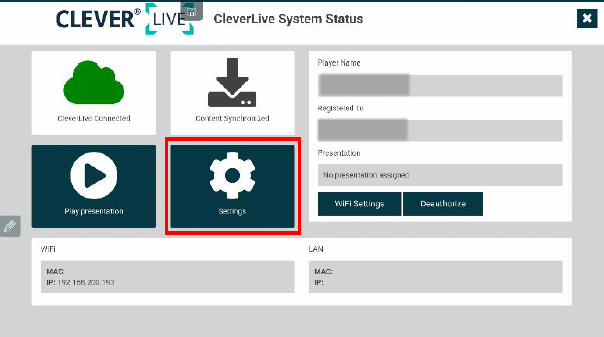

1. To configure a card open the CleverLive application on an NFC supported CleverTouch screen and navigate to the Settings menu.

   Note: If you cannot see the above menu when CleverLive application is opened and are presented with a digital signage presentation on screen instead, tap the following sequence on screen to exit the presentation and return to the system menu in the screenshot above:
   Top Left Of Screen, Bottom Right Of Screen, Top Left Of Screen, Bottom Right Of Screen

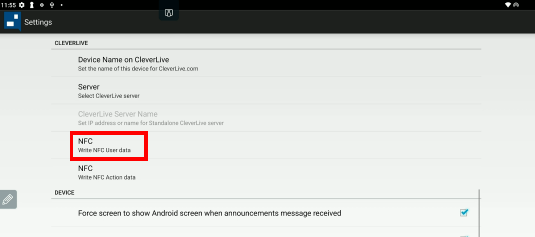

2. On the settings menu scroll down until you reach the section titled “CleverLive” and click on the option “NFC Write NFC User data”

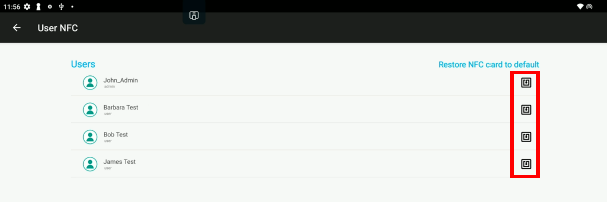

3. To configure a card with users data simply click on the NFC icon next to the username you wish to configure the card for and follow the on screen prompts to tap the card against the NFC reader.

   If the card has been used before by another user, you will have to tap on the blue text “Restore NFC card to default” and follow the instructions on screen before configuring the card for use on a specific user of choice.
